Serie 7 V-Shift
Serie 7 V-Shift,

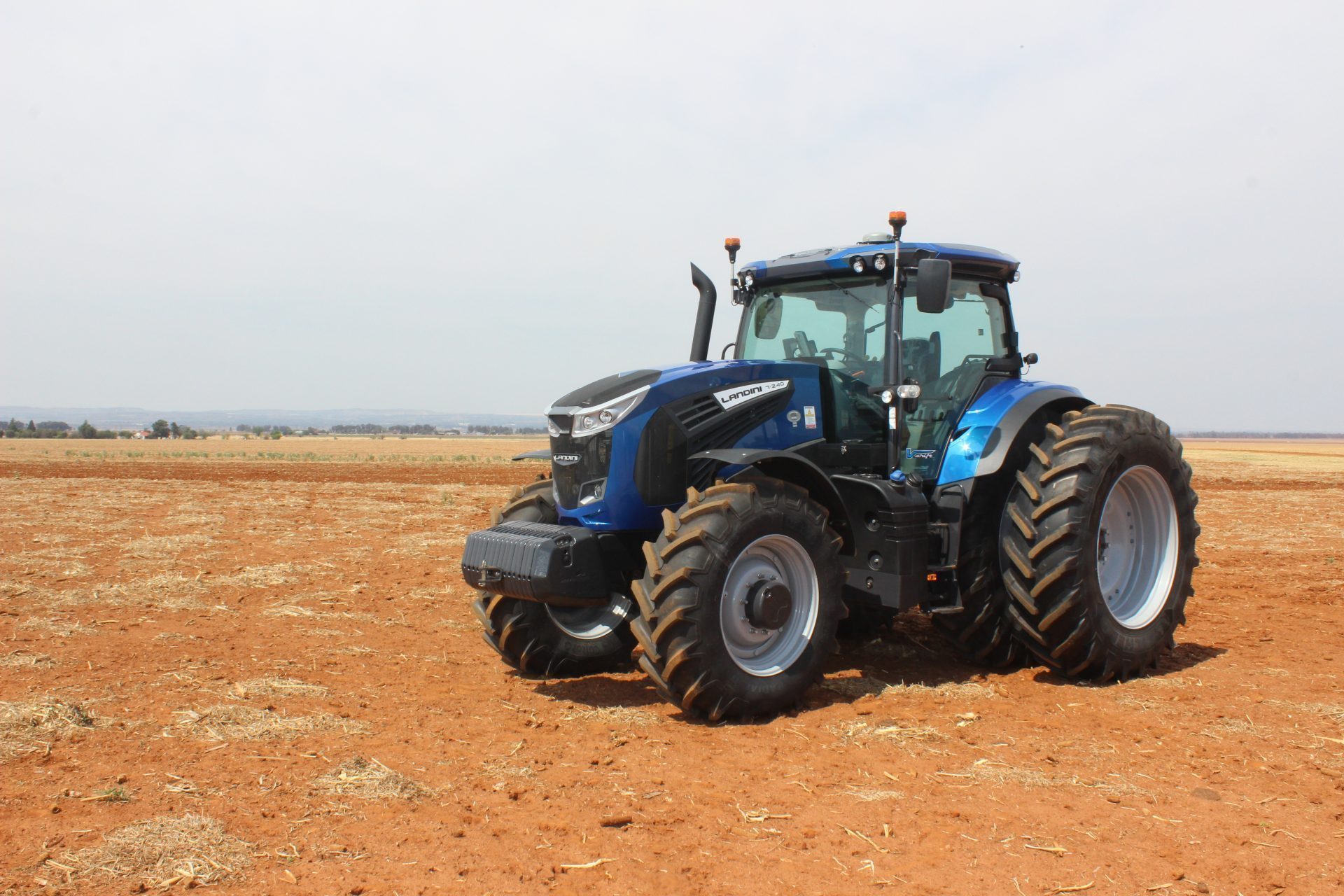

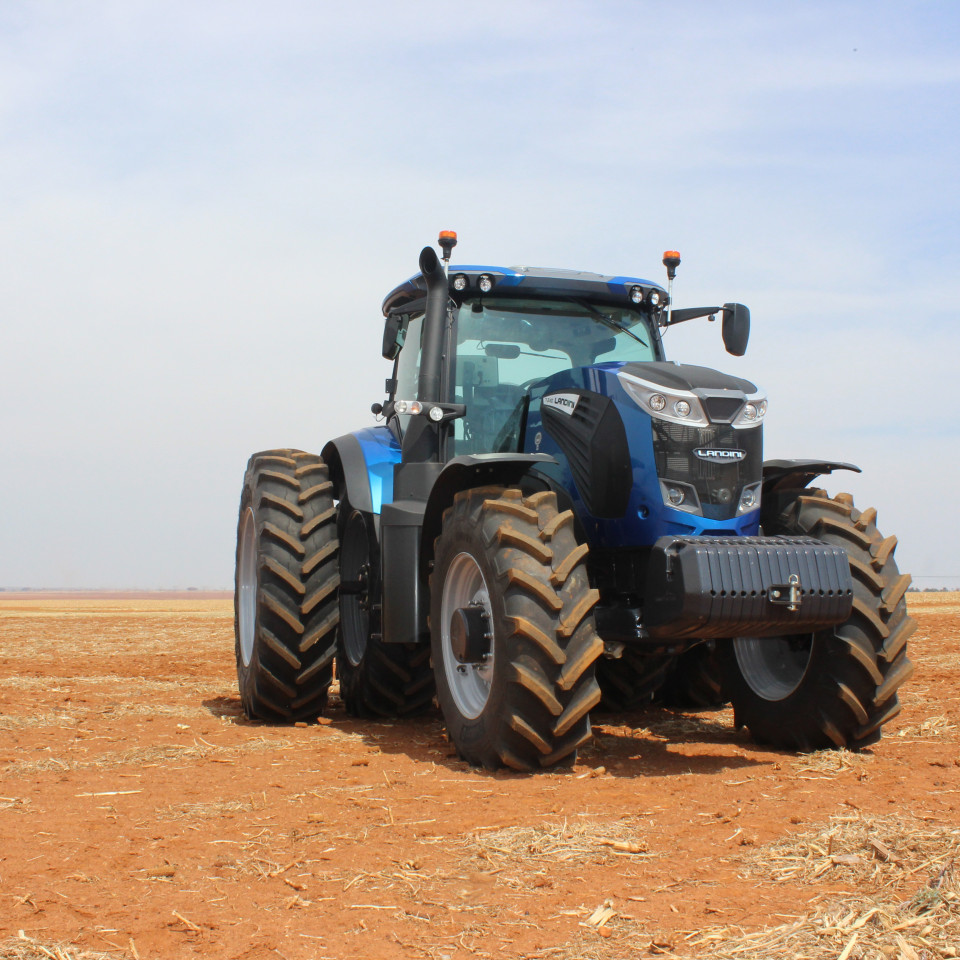

High quality materials, high level ergonomics, attention to detail, a spacious and highly comfortable cab all combine to guarantee that the Landini Series 7 V-Shift provides ease of use, outstanding performance and productivity, extreme comfort and simplified maintenance.
Engine
6,7 Litre Displacement / Common Rail NEF Engine / 6 Cylinder Engine
Power
170 kW Rated Power
Transmission
Constant Variable Transmission
TECHNOLOGY IS CHANGING THE WAY WE WORK IN THE COUNTRY
With solutions such as Fleet Management, Hybird technologies, the Stop and Action system and much more, Landini is able to help its customers work more efficiently and safely.
MAIN FEATURES
The 6-cylinder NEF engine, with 6,7 litres of displacement, turbo charged, inter cooled and common rail injection system is the power house of the Landini 7 series tractors. Combining all of these elements to ensure an extremely reliable and fuel-efficient engine. The engine is placed within a robust cast iron chassis and is therefore a “stress free” engine. Ensure that the engine preforms at it optimum, it has an electronic management system. The 4-stage continuously variable transmission is particularly suitable for heavy-duty use. Features include the minimum speed of 400m/h and a maximum speed of 40km/h. A 4 stage CVT transmission that gives you the competitive edge, a well-balanced integration of engine and transmission components ensuring extremely efficient fuel consumption. The 4 speed PTO allows the operator to chose between 540/540E or 1 000/1 000E speed rating for specific applications. The Series 7 V-Shift has a 160 l/min closed centre hydraulic circuit with a dedicated 54 l/m steering pump. The system is fitted with four electro-hydraulic control valves and all of these can be configured from the comfort of the cab. The robust lift arms allow for a lift capacity of 9 300 kg with electronic draft sensing and depth control. A newly designed cab featuring an ergonomical design, air suspended seat, that pivots 15 degrees, and an integrated armrest control for driver comfort. A hide away buddy seat is also a nice to have feature. All of this in an air conditioned and quiet confine of the cab. The large 12” touch DSM screen monitor enables simple and efficient control of the tractor as well as implement. The right-hand side door has been replaced with glass panel to allow for the fitment of a longer screen mounting bar this allows for more than two additional screens to be fitted. The ISOBUS and autosteer ready functions are standard for all of your technology-based applications. The lighting package consisting of 18 halogen lights mounted in the bonnet and on the cab ensures that the working conditions are well lite up after dark.
NEF Engine
4-Stage Continuously Variable Transmission - CVT
Hydraulic Circuit
CAB
x

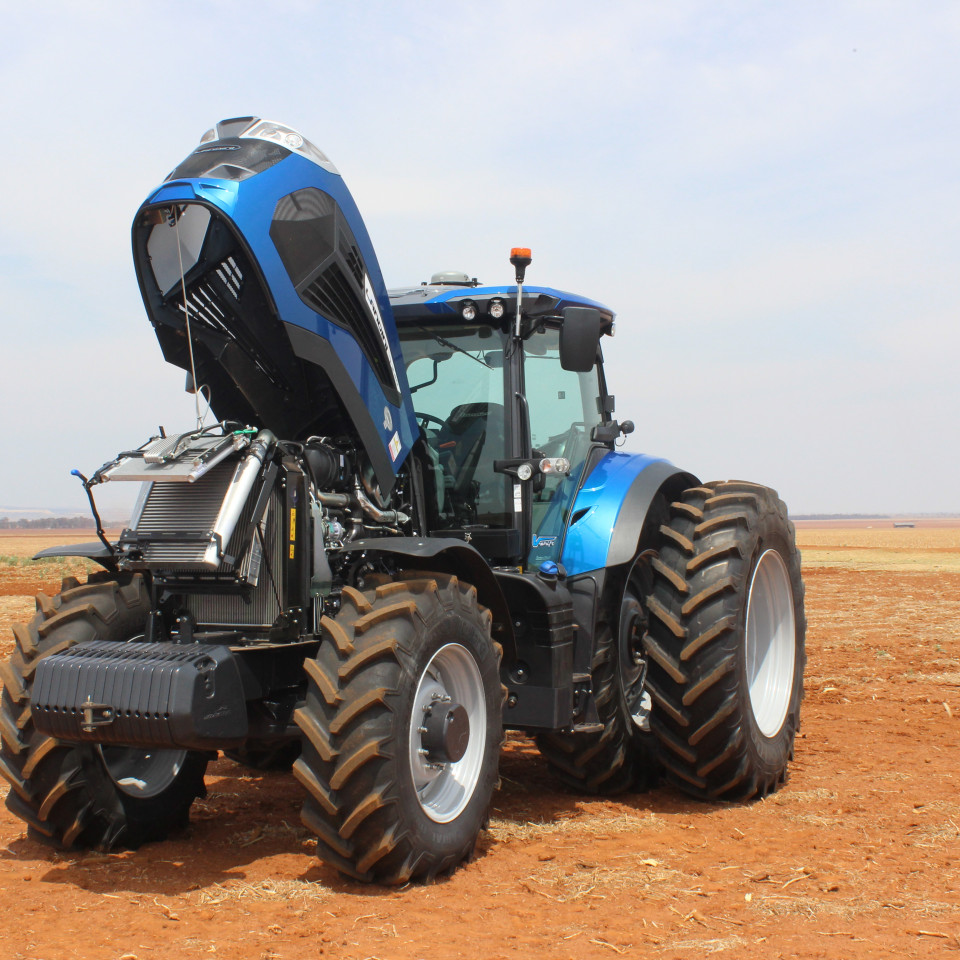

NEF Engine

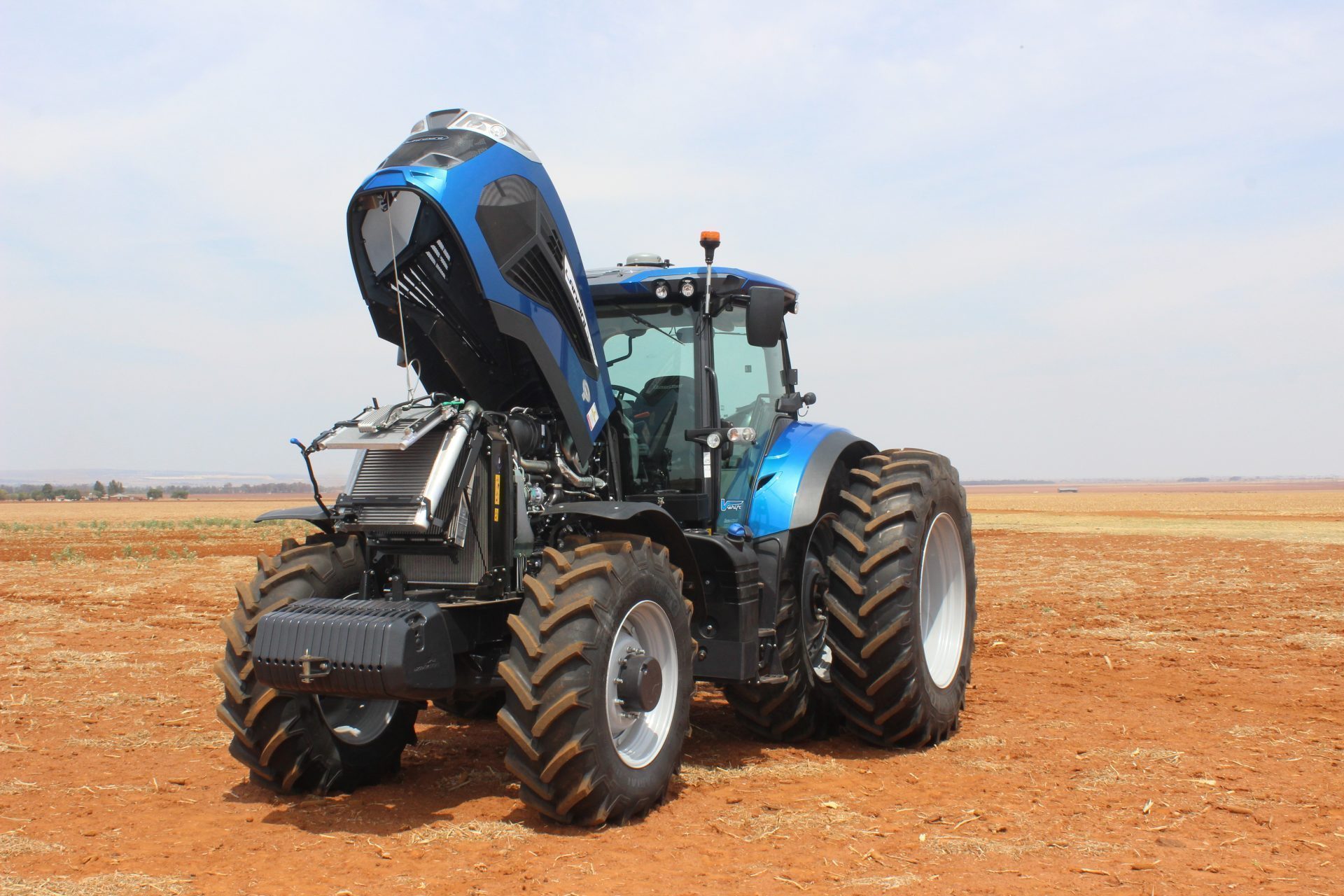

The 6-cylinder NEF engine, with 6,7 litres of displacement, turbo charged, inter cooled and common rail injection system is the power house of the Landini 7 series tractors. Combining all of these elements to ensure an extremely reliable and fuel-efficient engine. The engine is placed within a robust cast iron chassis and is therefore a “stress free” engine. Ensure that the engine preforms at it optimum, it has an electronic management system.
x
4-Stage Continuously Variable Transmission - CVT
The 4-stage continuously variable transmission is particularly suitable for heavy-duty use. Features include the minimum speed of 400m/h and a maximum speed of 40km/h. A 4 stage CVT transmission that gives you the competitive edge, a well-balanced integration of engine and transmission components ensuring extremely efficient fuel consumption. The 4 speed PTO allows the operator to chose between 540/540E or 1 000/1 000E speed rating for specific applications.
x
Hydraulic Circuit

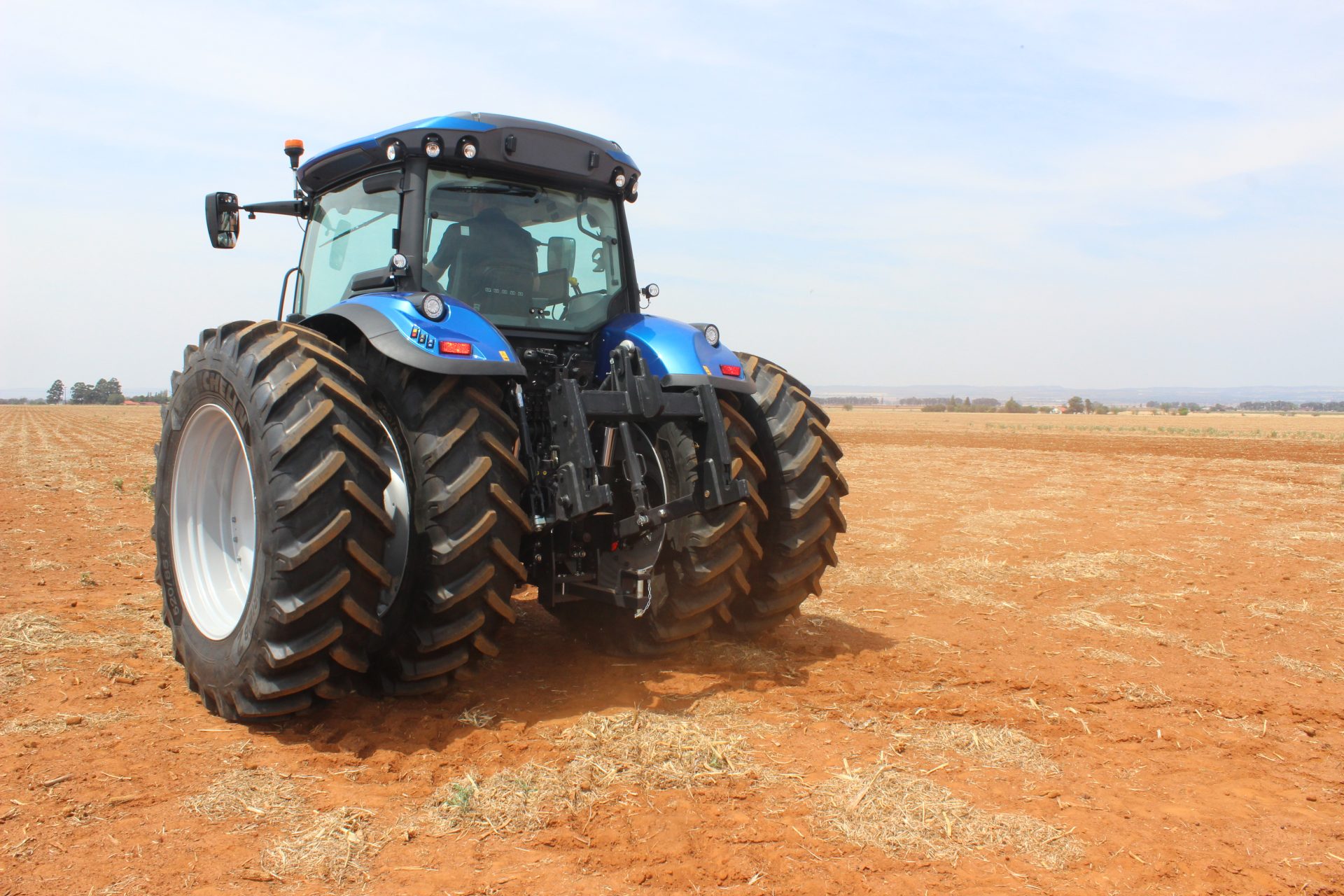

The Series 7 V-Shift has a 160 l/min closed centre hydraulic circuit with a dedicated 54 l/m steering pump. The system is fitted with four electro-hydraulic control valves and all of these can be configured from the comfort of the cab. The robust lift arms allow for a lift capacity of 9 300 kg with electronic draft sensing and depth control.
x
CAB
A newly designed cab featuring an ergonomical design, air suspended seat, that pivots 15 degrees, and an integrated armrest control for driver comfort.
A hide away buddy seat is also a nice to have feature. All of this in an air conditioned and quiet confine of the cab.
The large 12” touch DSM screen monitor enables simple and efficient control of the tractor as well as implement. The right-hand side door has been replaced with glass panel to allow for the fitment of a longer screen mounting bar this allows for more than two additional screens to be fitted. The ISOBUS and autosteer ready functions are standard for all of your technology-based applications. The lighting package consisting of 18 halogen lights mounted in the bonnet and on the cab ensures that the working conditions are well lite up after dark.
All the accessories and features that make this tractor unique and irreplaceable
